IDEAL 28" FUTOUR-E610 WAV
Wheel: 28''
Speed: 10
Battery: SHIMANO 504Wh (14.0Ah)
Motor: SHIMANO E6100, 60Nm
The Touring 28” Futour-E610 is designed and produced with the most reliable mid-range E-Bike motor on the market yet.
The sleek frame design houses a powerful Shimano STEPS motor with a smart system, as well as a 504Wh Shimano powerful battery.
Ergonomic fit with compact Q-factor design provides a better fit with the rider.
The short rear center improves maneuverability in busy city roads.
Shimano E-TUBE PROJECT allows you to adjust the cutoff speed through your smart device.
IDEAL E-Bikes are 100% certified by the Hansecontrol Cert laboratory in Hamburg, Germany.
Testing includes mechanical, mechanical dynamic (roller bench) or complete bike, electrical safety, electromagnetic compatibility, and chemical safety.
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.
Geometry / Sizes
| Frame size | 460 | 500 | 540 | |
| A | top tube | 580 | 590 | 600 |
| B | seat tube | 460 | 500 | 540 |
| C | rear center | 475 | 475 | 475 |
| D | wheel base | 1123.4 | 1133.5 | 1143,4 |
| E | bb drop | 60 | 60 | 60 |
| F | seat angle | 73° | 73° | 73° |
| G | head angle | 69°30' | 69°30' | 69°30' |
| H | offset | 45 | 45 | 45 |
| I | head tube | 190 | 190 | 190 |
SIZE CHART

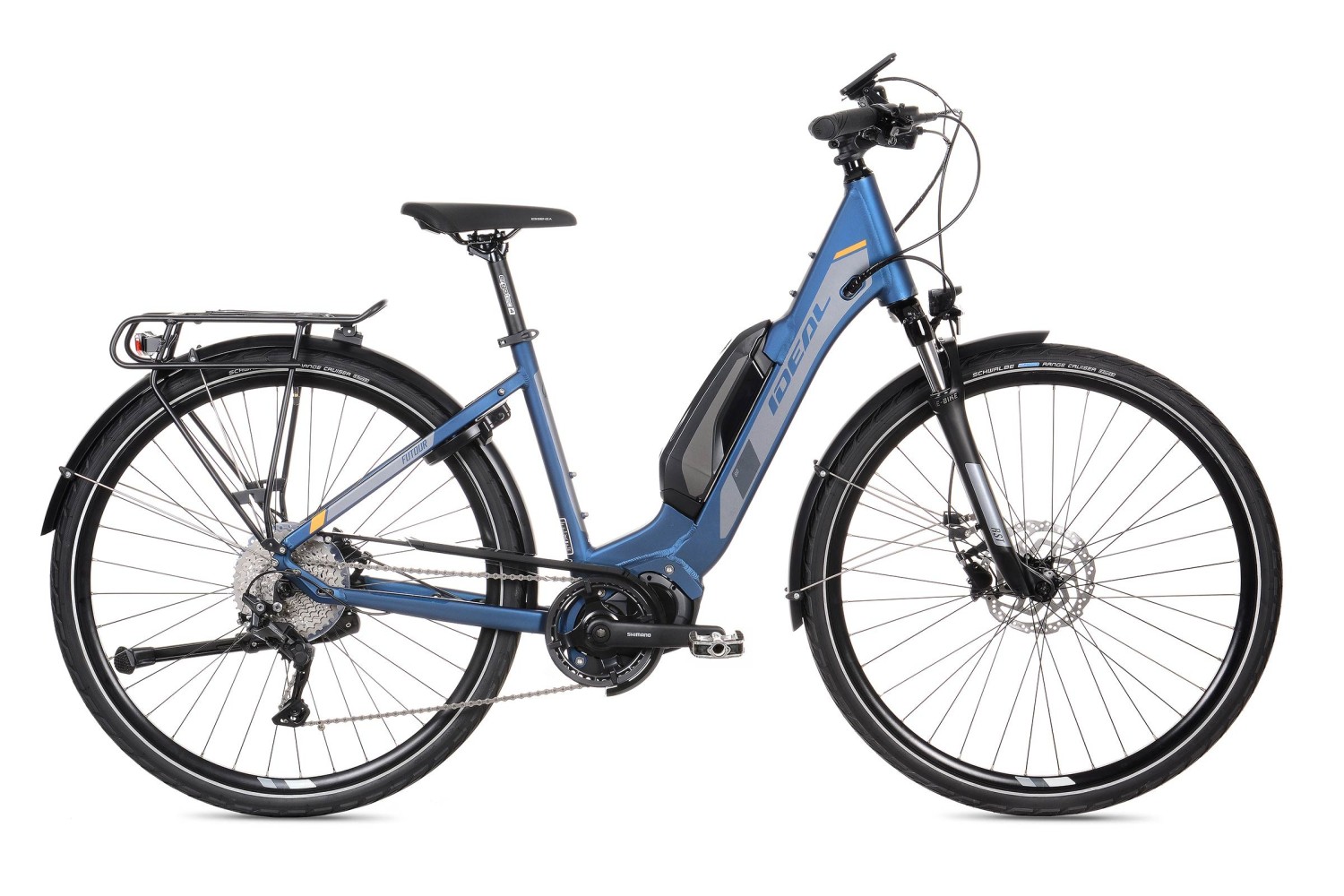

Satine/Blue, Size - M - 460mm
Data sheet
- Frame
- e-TOURING, Alloy 6061-T4/T6 hydroformed tubing, semi integrated battery, internal brake and speed cables
- Size
- 46/50cm
- Fork
- RST Volant-T, 60 mm, lockout, adjustable preload
- Drive Unit
- Shimano STEPS DU-E6100, 36V, 250W, 60Nm
- Battery
- Shimano STEPS BT-E8010, 36V, 14.0Ah, 504Wh
- Display
- Shimano STEPS SC-E6100
- Rear Derailleur
- Shimano Deore RD-M5120 SGS
- Shifter
- Shimano STEPS SW-E7000 switch / Shimano Deore SL-M4100-R
- Crankset
- Shimano STEPS FC-E6100, 38T
- Cassette Sprocket
- Shimano CS-M4100-10, 11-42T
- Chain
- Shimano CN-E6090-10
- Front Hub
- Shimano HB-M505
- Rear Hub
- Shimano TX505
- Tires
- Schwalbe Range Cruiser K-Guard, TwinSkin, 47-622 (28x1.75)
- Brakes
- Shimano BR-MT410/BL-MT401 hydraulic disc brakes, 180/180 mm
- Handlebar
- Ergotec Alloy, 720 mm, safety level 4
- Stem
- Ergotec Octopus Ahead, Alloy adjustable 31.8 mm, safety level 4
- Seat Post
- Ergotec Atar, Alloy 30.9 mm, safety level 4
- Saddle
- Selle Royal Premium, New Essenza VLS, Moderate
- Lightning Set
- Herrmans H-Black MR4, 30Lux / AXA Blue Line 2 LED
- Mudguards
- SKS PET, 56 mm
- Carrier
- Standwell, Alloy
- Rims
- Cross X-6, 622-21
- Kickstand
- Atran Rex-HV, rear kickstand
