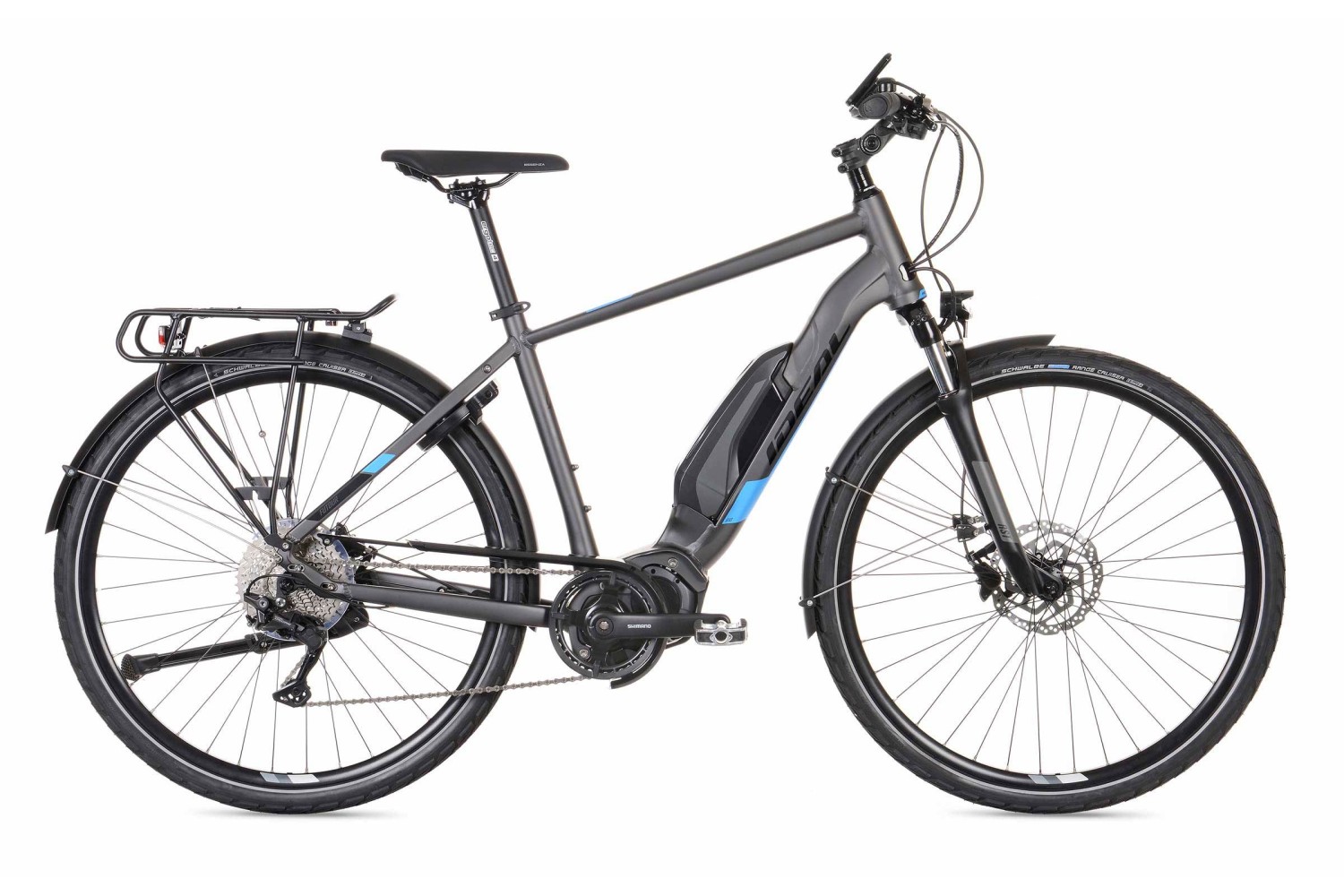

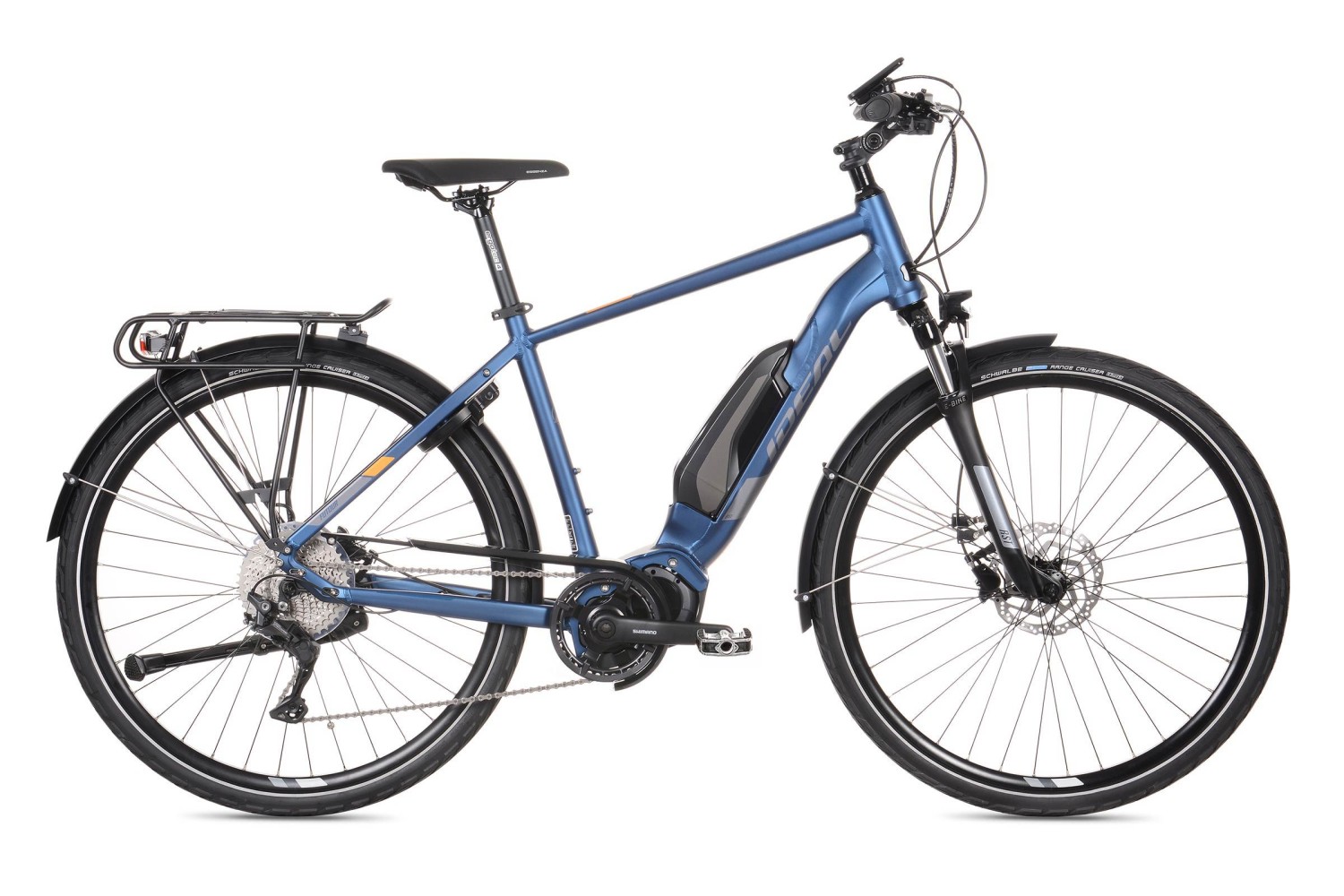

IDEAL 28" FUTOUR-E610 M

Name: IDEAL 28" FUTOUR-E610 M
Brand: IDEAL BIKES
SKU: IDEAL 28" FUTOUR-E610 M
Price: 1999 GBP
Availability: InStock

Reference: IDEAL 28" FUTOUR-E610 M

£1,999.00

IDEAL BIKES

Tax included

0 Review(s)

Wheel: 28''
Speed: 10
Battery: SHIMANO 504Wh (14.0Ah)

Motor: SHIMANO E6100, 60Nm

The Touring 28” Futour-E610 is designed and produced with the most reliable mid-range E-Bike motor on the market yet.
The sleek frame design houses a powerful Shimano STEPS motor with a smart system, as well as a 504Wh Shimano powerful battery.
Ergonomic fit with compact Q-factor design provides a better fit with the rider.
The short rear center improves maneuverability in busy city roads.
Shimano E-TUBE PROJECT allows you to adjust the cutoff speed through your smart device.
IDEAL E-Bikes are 100% certified by the Hansecontrol Cert laboratory in Hamburg, Germany.
Testing includes mechanical, mechanical dynamic (roller bench) or complete bike, electrical safety, electromagnetic compatibility, and chemical safety.

IDEAL 28" FUTOUR-E610 M

£1,999.00

IDEAL BIKES

Tax included

Size :

Colour :

Quantity :

This is an approximate conversion table to help you find your size.

If you already have purchased an item from our brand, we recommend that you select the same size as indicated on the table

Italian Size	French Size	Spanish Size	German Size	UK Size	USA Size	Japanese Size
34	30	30	30	4	00	34
36	32	32	32	6	0	36
38	34	34	34	8	2	38
40	36	36	36	10	4	40
42	38	38	38	12	6	42
44	40	40	40	14	8	44
46	42	42	42	16	10	46
48	44	44	44	18	12	48
50	46	46	46	20	14	50
52	48	48	48	22	16	52

Write review

Buy in one click

Security policy

All payment secured through encrypted networks.

Delivery policy

CFree delivery all over UK.

Return policy

Free return within 14 days.

Geometry / Sizes

	Frame size	460	500	540	580
A	top tube	580	590	600	605
B	seat tube	460	500	540	580
C	rear center	475	475	475	475
D	wheel base	1119	1129.6	1140.3	1145.9
E	bb drop	60	60	60	60
F	seat angle	73°	73°	73°	73°
G	head angle	69°30'	69°30'	69°30'	69°30'
H	offset	44	44	44	44
I	head tube	160	170	180	190

SIZE CHART

Reference IDEAL 28" FUTOUR-E610 M

Data sheet

Frame: e-TOURING, Alloy 6061-T4/T6 hydroformed tubing, semi integrated battery, internal brake and speed cables
Size: 50/54 cm
Fork: RST Volant-T, 60 mm, lockout, adjustable preload
Drive Unit: Shimano STEPS DU-E6100, 36V, 250W, 60Nm
Battery: Shimano STEPS BT-E8010, 36V, 14.0Ah, 504Wh
Display: Shimano STEPS SC-E6100
Rear Derailleur: Shimano Deore RD-M5120 SGS
Shifter: Shimano STEPS SW-E7000-L switch / Shimano Deore SL-M4100-R
Crankset: Shimano STEPS FC-E6100, 38T
Cassette Sprocket: Shimano CS-M4100-10, 11-42T
Chain: Shimano CN-E6090-10
Front Hub: Shimano HB-M505
Rear Hub: Shimano TX505
Tires: Schwalbe Range Cruiser K-Guard, TwinSkin, 47-622 (28x1.75)
Brakes: Shimano BR-MT200/BL-MT201 hydraulic disc brakes, 180/180 mm
Handlebar: Ergotec Alloy, 720 mm, safety level 4
Stem: Ergotec Octopus Ahead, Alloy adjustable 31.8 mm, safety level 4
Seat Post: Ergotec Atar, Alloy 30.9 mm, safety level 4
Saddle: Selle Royal Premium, New Essenza VLS, Moderate
Lightning Set: Herrmans H-Black MR8, 50Lux / AXA Blue Line 2 LED
Mudguards: SKS PET, 56 mm
Carrier: Standwell Alloy
Rims: Cross X-6, 622-21
Kickstand: Atran Rex-HV, rear kickstand
