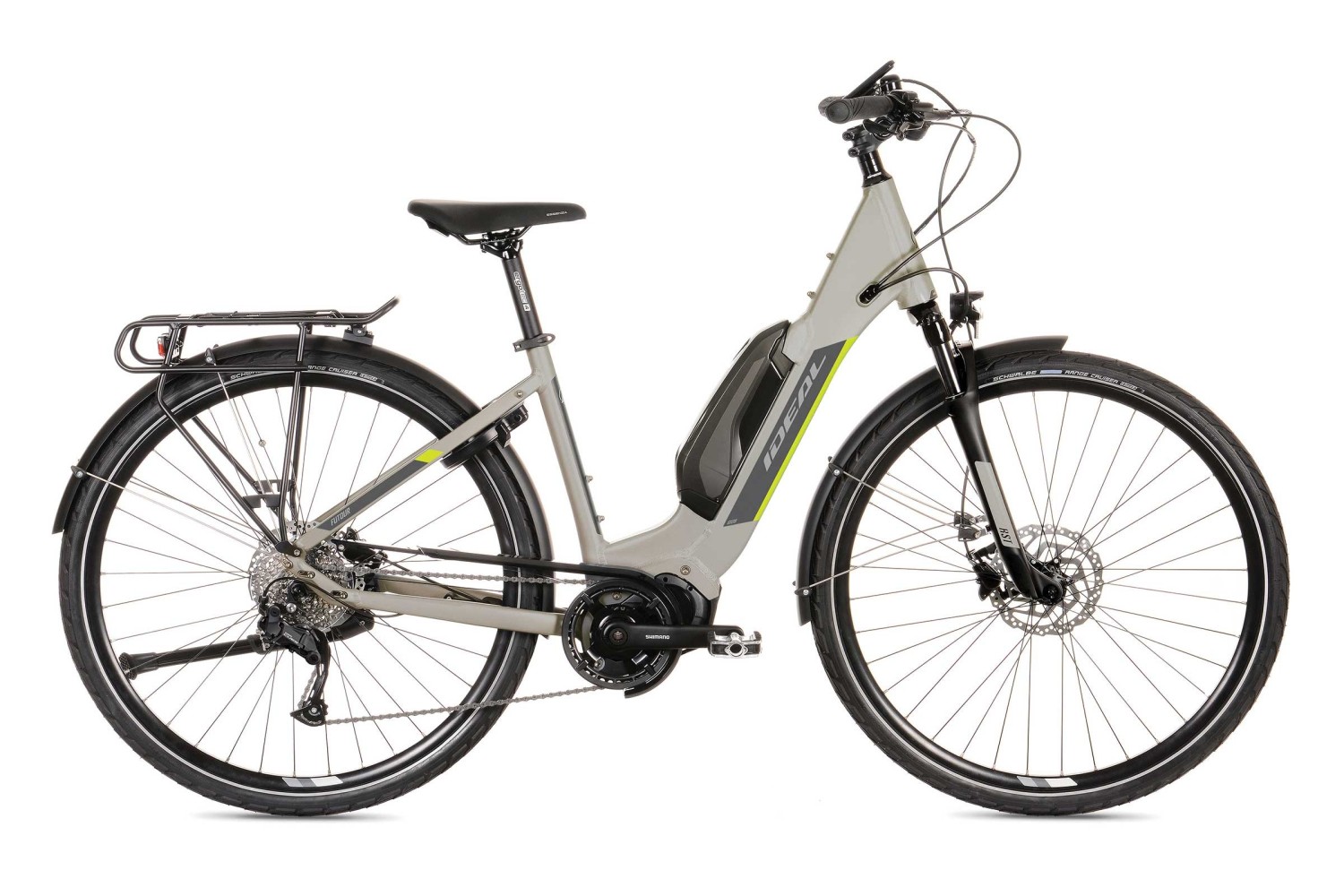

IDEAL 28" FUTOUR-E6109 WAV
Wheel: 28''
Speed: 9
Battery: SHIMANO 504Wh (14.0Ah)
Motor: SHIMANO E6100, 60Nm
The Touring 28” Futour-E6109 is designed and produced with the most reliable mid-range E-Bike motor on the market yet.
The sleek frame design houses a powerful Shimano STEPS motor with a smart system, as well as a 504Wh Shimano powerful battery.
Ergonomic fit with compact Q-factor design provides a better fit with the rider.
The short rear center improves maneuverability in busy city roads.
Shimano E-TUBE PROJECT allows you to adjust the cutoff speed through your smart device.
IDEAL E-Bikes are 100% certified by the Hansecontrol Cert laboratory in Hamburg, Germany.
Testing includes mechanical, mechanical dynamic (roller bench) or complete bike, electrical safety, electromagnetic compatibility, and chemical safety.
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.
Geometry / Sizes
| Frame size | 460 | 500 | 540 | |
| A | top tube | 580 | 590 | 600 |
| B | seat tube | 460 | 500 | 540 |
| C | rear center | 475 | 475 | 475 |
| D | wheel base | 1123.4 | 1133.5 | 1143,4 |
| E | bb drop | 60 | 60 | 60 |
| F | seat angle | 73° | 73° | 73° |
| G | head angle | 69°30' | 69°30' | 69°30' |
| H | offset | 45 | 45 | 45 |
| I | head tube | 190 | 190 | 190 |
SIZE CHART
Satine/Blue, Size - M - 460mm
Data sheet
- Frame
- e-TOURING, Alloy 6061-T4/T6 hydroformed tubing, semi integrated battery, internal brake and speed cables
- Size
- 46/50cm
- Fork
- RST Volant-T, 60 mm, 30 mm, Coil
- Drive Unit
- Shimano STEPS DU-E6100, 60Nm, sportive
- Battery
- Shimano BT-E8010, 504Wh (14Ah)
- Display
- Shimano STEPS SC-E6100
- Power Adapter
- Shimano EC-E6000-1, Fast Charging, 4A
- Rear Derailleur
- Shimano CUES RD-U4000 Shadow
- Shifter
- Shimano STEPS SW-E7000-L/ Shimano Deore SL-T6000-R
- Crankset
- Shimano STEPS FC-E6100 / SM-CRE61 SCG, 38T
- Cassette Sprocket
- Shimano CS-LG300-9, 11-36T
- Chain
- Shimano CN-LG500
- Chain Protector
- Herrmans Slim
- Front Hub
- Shimano HB-QC300
- Rear Hub
- Shimano FH-QC300
- Frame Lock
- AXA Solid Plus
- Tires
- Schwalbe Land Cruiser Plus, PunctureGuard, 50-622
- Brakes
- Shimano BR-MT200/BL-MT201, Hydraulic Disc Breaks 180/180 mm
- Handlebar
- Ergotec Ladytown, 620 mm (Safety Level 4)
- Stem
- Ergotec Octopus 2 Ahead, verstellbar, 31.8 mm, 75/105 mm (Safety Level 4)
- Seat Post
- Ergotec Atar, 31.6 mm (Safety Level 4)
- Saddle
- Selle Royal Premium Essenza
- Lightning Set
- Herrmans H-Black MR4, 120 Lumen / AXA Blue Line 2LED
- Mudguards
- SKS PET, 56 mm
- Carrier
- ID-Project, Racktime Snapit System
- Rims
- Mach1 640 Disc, 21C-622
- Kickstand
- Atran REX-HV
