PRISMA E610-571 SUV
Wheel: 27.5 ''
Speed: 10

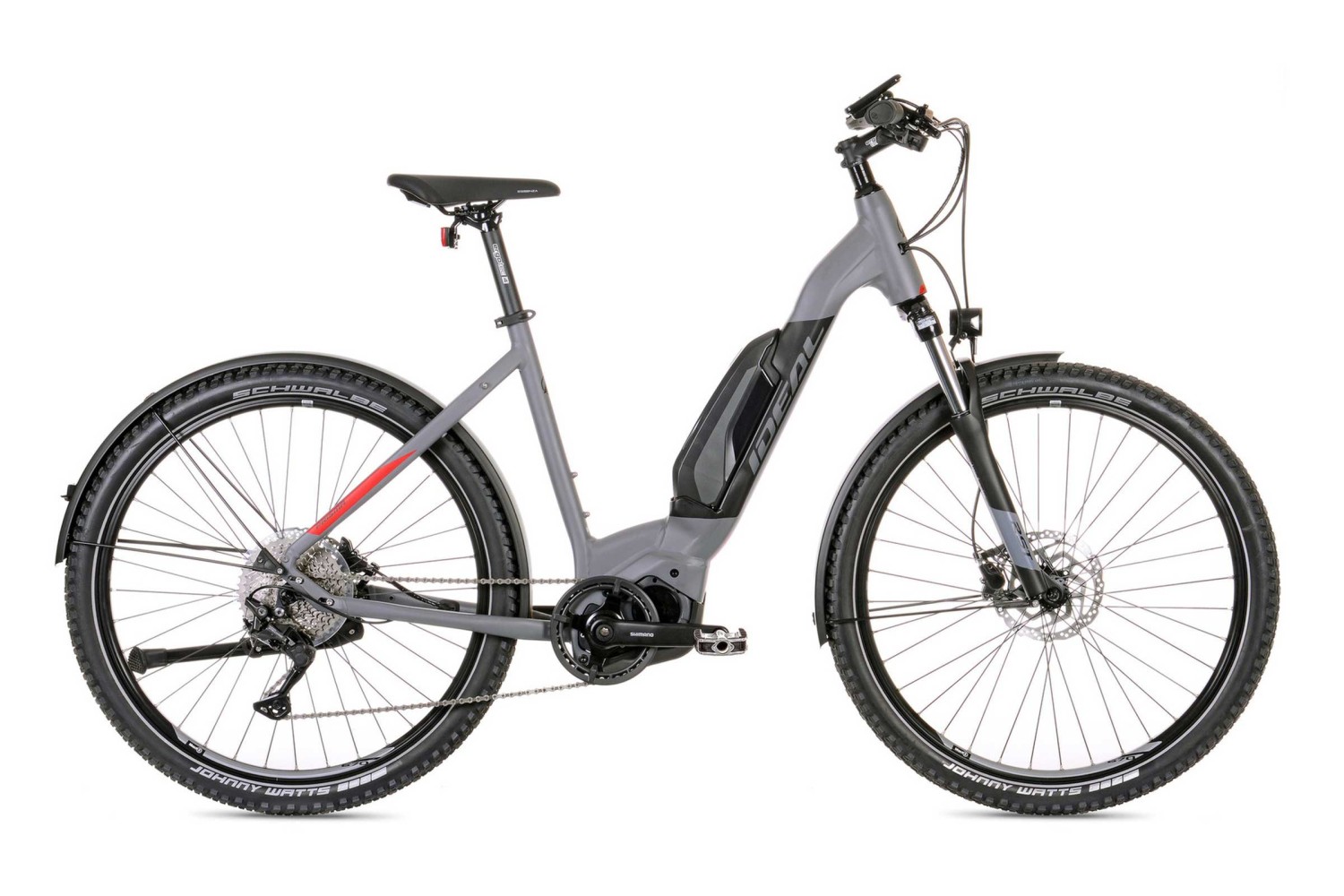

The IDEAL PRISMA E610-581 SUV is a rugged, dependable electric adventure bike built for riders who want durability, comfort, and versatility in equal measure. Powered by a Shimano STEPS DU-E6100 motor (60Nm torque) and a 504Wh Shimano battery, it delivers smooth, sporty assistance for both city commuting and off-road exploring. With 29" wheels, Shimano 10-speed gearing, front suspension with lockout, and Shimano hydraulic disc brakes, the E610-581 SUV is ready to take on everyday routes and rougher trails alike — all backed by free UK delivery from YessBikes.
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.
Geometry / Sizes
|
Frame size
|
460 | 500 | 540 | |
| A | Top tube | 600 | 600 | 610 |
| B | Seat tube | 460 | 500 | 540 |
| C | Rear center | 480 | 480 | 480 |
| D | Whellbase | 1162.1 | 1162.7 | 1173.6 |
| E | bb drop | 55 | 55 | 55 |
| F | Seat angle | 73° | 73° | 73° |
| G | Head angle | 69° | 69° | 69° |
| H | Offset | 51 | 51 | 51 |
| I | Head tube | 160 | 170 | 180 |
PRISMA E610-571 SUV
Data sheet
- Frame
- e-ADVENTURE 27.5", Alloy 6061-T4/T6 hydroformed tubing, semi-integrated battery, internal brake & gear cables
- Size
- 46/50 cm
- Fork
- RST Blaze-MLC, 100 mm, lockout, adjustable preload
- Drive Unit
- Shimano STEPS DU-E6100, 36V, 250W, 60Nm, sportiv
- Battery
- Shimano STEPS BT-E8010, 36V, 14Ah, 504Wh
- Display
- Shimano STEPS display SC-E6100
- Rear Derailleur
- Shimano Deore RD-M5120 SGS
- Shifter
- Shimano STEPS SW-E7000-L switch / Shimano Deore SL-M4100-R
- Crankset
- Shimano STEPS FC-E6100, 38T
- Cassette Sprocket
- Shimano CS-M4100-10, 11-42T
- Chain
- Shimano CN-E6090-10
- Chain Protector
- Herrmans Slim
- Front Hub
- Shimano HB-M3050
- Rear Hub
- Shimano FH-M3050
- Tires
- Schwalbe Johnny Watts, 60-584 (27.5x2.35))
- Brakes
- Shimano BR-MT200/BL-MT201 hydraulic disc brakes, 180/180 mm
- Handlebar
- Ergotec Low Riser, Alloy 700 mm, safety level 4
- Stem
- Ergotec Crab 2, Alloy 31.8 mm, safety level 4
- Seat Post
- Ergotec Atar, Alloy 30.9 mm, safety level 4
- Saddle
- Selle Royal Premium, New Essenza VLS, Moderate
- Lightning Set
- Herrmans H-Black MR8, 50Lux / Herrmans H-Trace Micro
- Mudguards
- SKS PET A65R, 65 mm
- Rims
- Mach1 CROSS-R 27, 27C-584
- Kickstand
- Atran Rex-HV, rear kickstand
