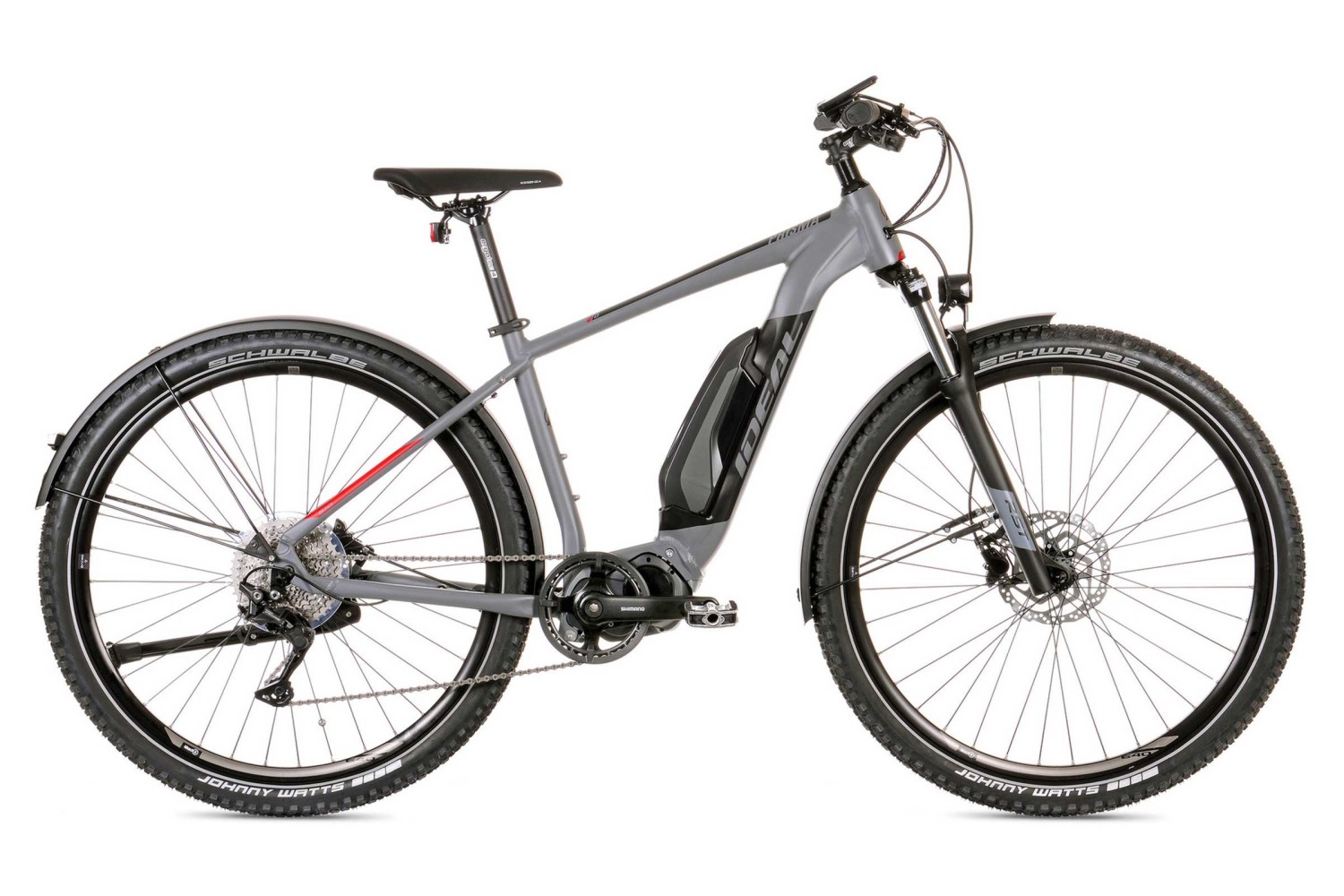

IDEAL 29" PRISMA E610 SUV
Wheel: 29 ''
Speed: 10
IDEAL E-Bikes are 100% certified by Hansecontrol Cert laboratory in Hamburg, Germany. Testing includes mechanical for frame and fork, mechanical dynamic (roller bench) or complete bike, electrical safety, electromagnetic compatibility, and chemical safety.
29” PRISMA E610 SUV is certified up to 140kg combined weight.
IDEAL 29” Prisma-E610SUV rolls easily over big hits yet boasts nimble handling. The 29” PRISMA is what you call a pure electric adventure bike, tackle the hardest climbs and a geometry that will make you feel comfortable on the most technical descents on the trail. SHIMANO STEPS E6100 Drive Unit offers 60Nm for a more responsive riding experience with 250W of power allows riders to enjoy the ride. Original Shimano battery providing range up to a 120 miles.
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.

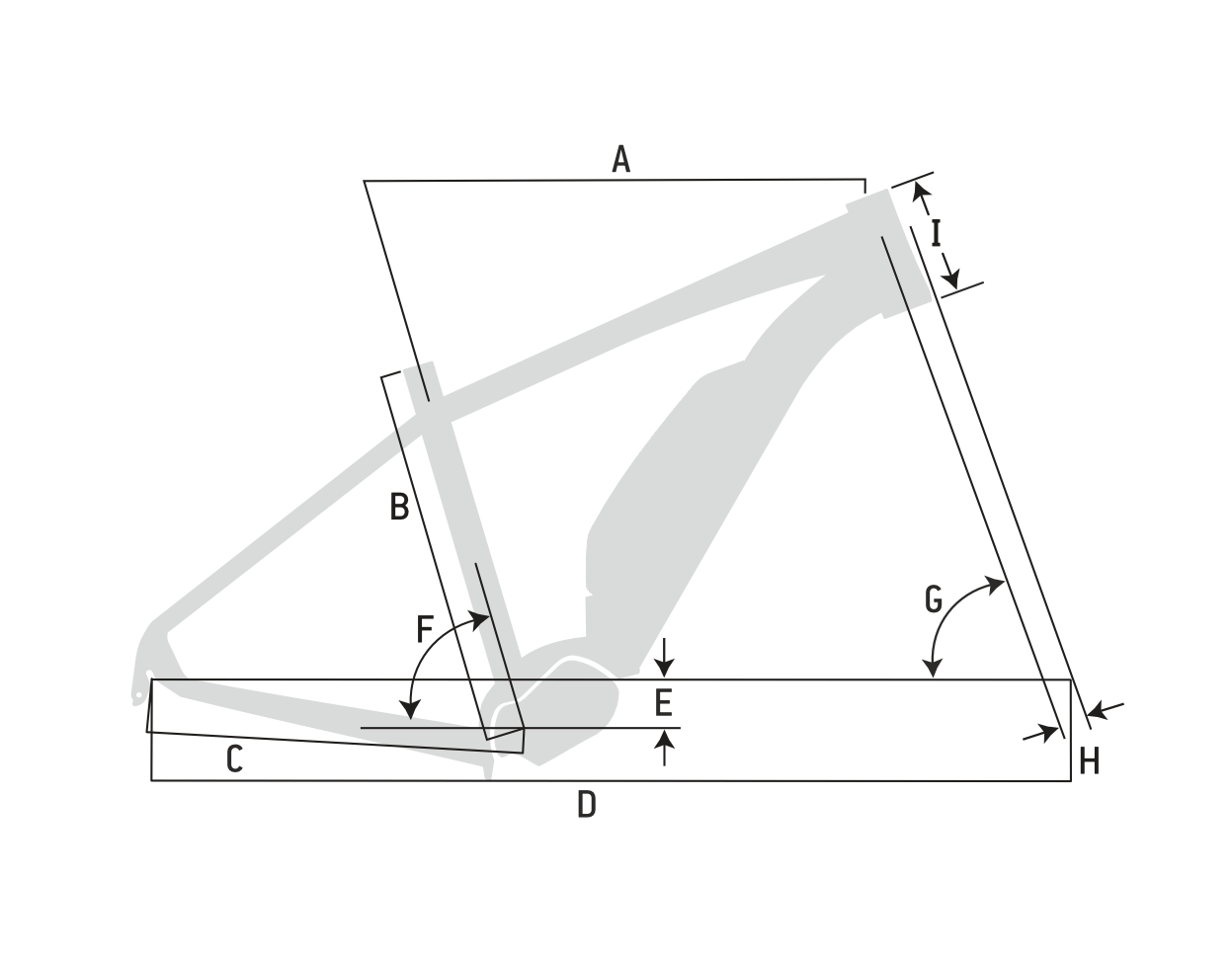

| Frame size | 440 | 480 | 520 | 560 | ||
| A | TOP TUBE | 580 | 600.5 | 620 | 630 | |
| B | SEAT TUBE | 440 | 480 | 520 | 560 | |
| C | REAR CENTER | 450 | 450 | 450 | 450 | |
| D | WHEEL BASE | 1086.2 | 1107.3 | 1127.5 | 1137.4 | |
| E | B.B. DROP | 60 | 60 | 60 | 60 | |
| F | SEAT ANGLE | 74° | 74° | 74° | 74° | |
| G | HEAD ANGLE | 71° | 71° | 71° | 71° | |
| H | OFFSET | 42 | 42 | 42 | 42 | |
| I | HEAD TUBE | 110 | 120 | 130 | 140 |
SIZE CHART
IDEAL 29" PRISMA E610 SUV
Data sheet
- Frame
- eHardtail 29,AL6061-T4/T6, Shimano STEPS, hydroforming, internal brake&gear cables
- Size
- 44/48/52 cm
- Fork
- RST Blaze-MLC, 100 mm, lockout, adjustable preload
- Drive Unit
- Shimano STEPS DU-E6100, 36V, 250W, 60Nm, sportiv
- Battery
- Shimano STEPS (down tube) BT-E8010, 36V, 14Ah, 504Wh
- Display
- Shimano STEPS SC-E6100
- Rear Derailleur
- Shimano Cues RD-U4000-GS
- Shifter
- Shimano STEPS SW-E7000 unit / gear lever switch // Shimano Acera SL-M3000
- Crankset
- Shimano STEPS FC-E6100, 38T
- Cassette Sprocket
- Shimano CS-LG300-9, CUES, 9-SPEED, 11-41T
- Chain
- Shimano CN-E6070-9
- Front Hub
- Shimano HB-TX505
- Rear Hub
- Shimano FH-TX505-8
- Tires
- Kenda 60-622 (29x2.35), K1153 30TPI
- Brakes
- Shimano BR-MT200 / BL-MT201 hydraulic disc brakes 180/180 mm
- Handlebar
- id-Project riser bar aluminum, 720 mm
- Stem
- id-Project aluminum, 31.8 mm
- Seat Post
- Id-Project, 31.6 mm
- Saddle
- Selle Italia X-BASE Boost
- Rims
- Mach1, 622-21
