PRISMA E610-581 SUV
Wheel: 29 ''
Speed: 10

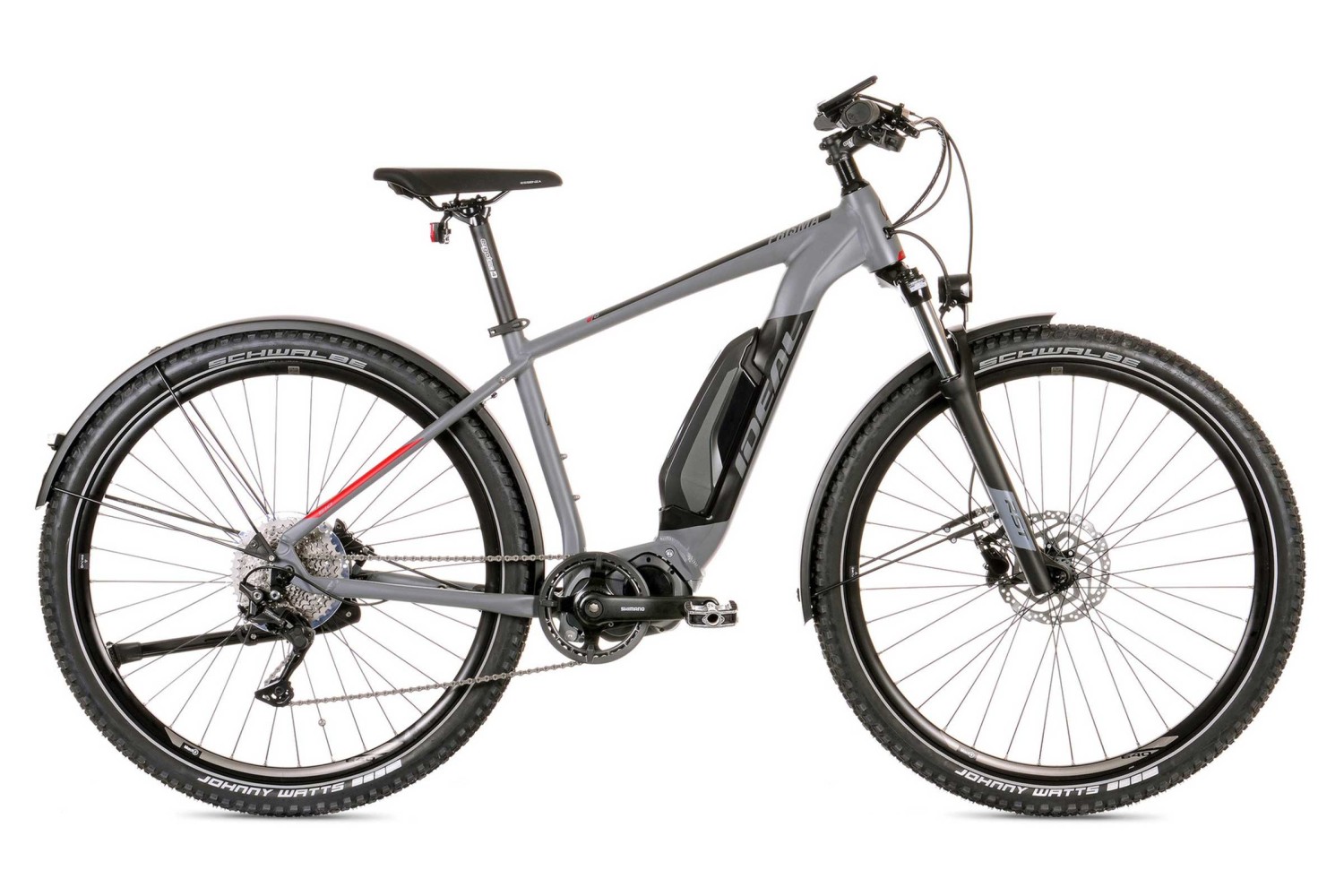

The IDEAL PRISMA E610-581 SUV is a rugged, dependable electric adventure bike built for riders who want durability, comfort, and versatility in equal measure. Powered by a Shimano STEPS DU-E6100 motor (60Nm torque) and a 504Wh Shimano battery, it delivers smooth, sporty assistance for both city commuting and off-road exploring. With 29" wheels, Shimano 10-speed gearing, front suspension with lockout, and Shimano hydraulic disc brakes, the E610-581 SUV is ready to take on everyday routes and rougher trails alike — all backed by free UK delivery from YessBikes."
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.
| Frame size | 440 | 480 | 520 | 560 | ||
| A | TOP TUBE | 580 | 600.5 | 620 | 630 | |
| B | SEAT TUBE | 440 | 480 | 520 | 560 | |
| C | REAR CENTER | 450 | 450 | 450 | 450 | |
| D | WHEEL BASE | 1086.2 | 1107.3 | 1127.5 | 1137.4 | |
| E | B.B. DROP | 60 | 60 | 60 | 60 | |
| F | SEAT ANGLE | 74° | 74° | 74° | 74° | |
| G | HEAD ANGLE | 71° | 71° | 71° | 71° | |
| H | OFFSET | 42 | 42 | 42 | 42 | |
| I | HEAD TUBE | 110 | 120 | 130 | 140 |
SIZE CHART
PRISMA E610-581 SUV
Data sheet
- Frame
- e-ADVENTURE 29", Alloy 6061-T4/T6 hydroformed tubing, semi-integrated battery, internal brake & gear cables
- Size
- 44/48/52 cm
- Fork
- RST Blaze-MLC, 100 mm, lockout, adjustable preload
- Drive Unit
- Shimano STEPS DU-EP600, 36V, 250W, 60Nm, sportiv
- Battery
- Shimano STEPS BT-EN606A, 36V, 14Ah, 630Wh
- Display
- Shimano STEPS display SC-EN610
- Rear Derailleur
- Shimano Deore RD-U6000
- Shifter
- Shimano STEPS SW-EN600-L switch / Shimano Deore SL-U6000-R
- Crankset
- Shimano STEPS FC-EM600, 38T
- Cassette Sprocket
- Shimano CS-LG400-10, 11-48T
- Chain
- Shimano CN-LG500
- Front Hub
- Shimano HB-QC400
- Rear Hub
- Shimano FH-QC400
- Tires
- Schwalbe Johnny Watts, 60-622 (29x2.35)
- Brakes
- Shimano BR-MT200/BL-MT201 hydraulic disc brakes, 180/180 mm
- Handlebar
- Ergotec Low Riser, Alloy 700 mm, safety level 4
- Stem
- Ergotec Crab 2, Alloy 31.8 mm, safety level 4
- Seat Post
- Ergotec Atar, Alloy 30.9 mm, safety level 4
- Saddle
- Selle Royal Premium, New Essenza VLS, Moderate
- Lightning Set
- Herrmans H-Black MR9, 190 Lumen / Herrmans H-Trace Micro
- Mudguards
- SKS PET A65R, 65 mm
- Rims
- Mach1 Cross-R 27, 622-21
- Kickstand
- Atran Rex-HV, rear kickstand
