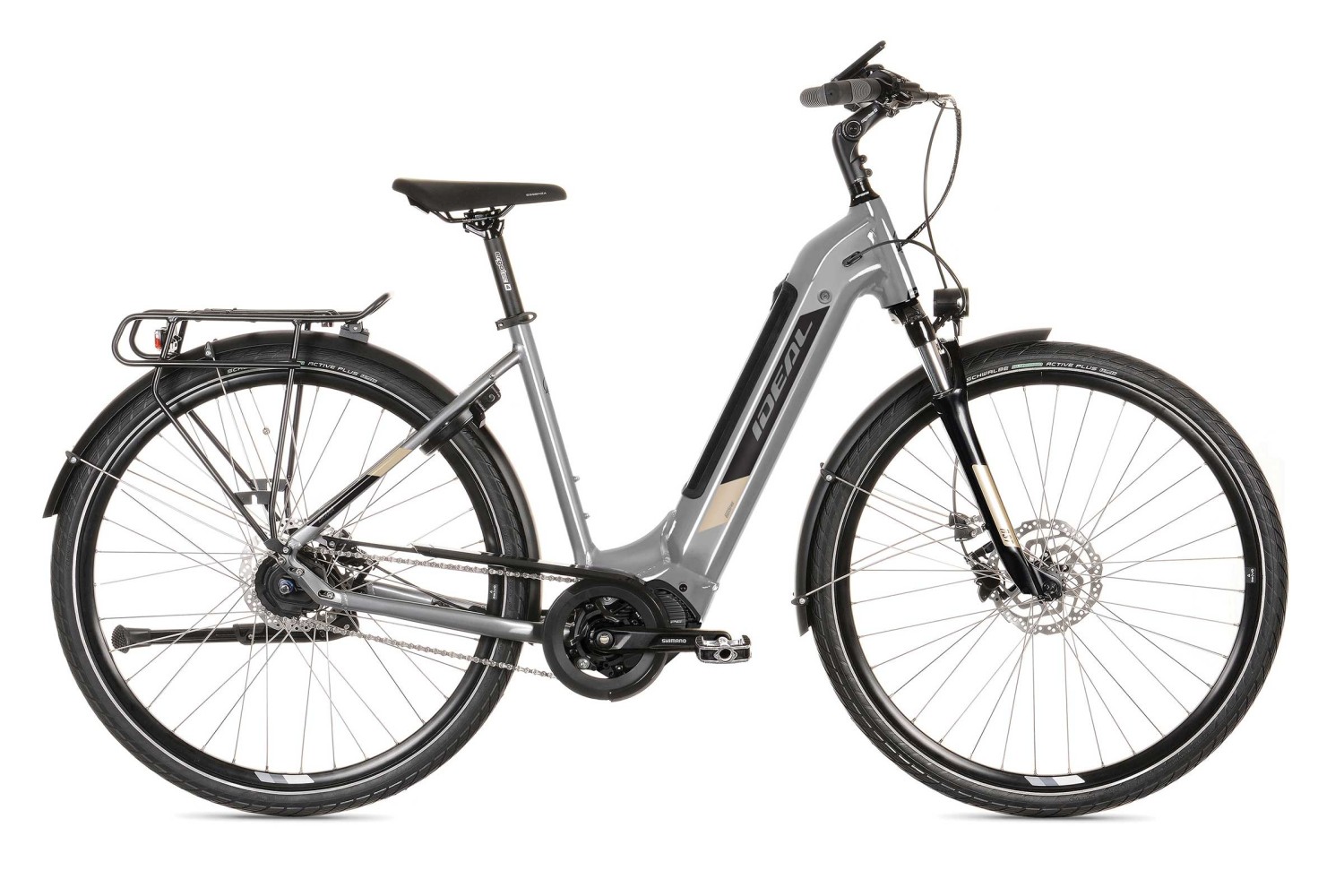

Ideal Orama E610FNX EP600

Name: Ideal Orama E610FNX EP600
Brand: IDEAL BIKES
SKU: IDEAL 28" FUTOUR-E610FX EP600
Price: 2450 GBP
Availability: InStock

Reference: IDEAL 28" FUTOUR-E610FX EP600

£2,450.00

IDEAL BIKES

Tax included Delivered within 5-7 days

0 Review(s)

Wheel: 28''
Speed: 5 Nexus

Shimano EP600 motor: 85Nm

IDEAL 28” Orama-E610FNX-EP600 is what you call a pure electric reliable bike.
Accomplished with SHIMANO STEPS EP600 Drive Unit, a US Class-1 device!

Capable of tackling the hardest city climbs and with a geometry that will make you feel comfortable during the city and off-road rides. Quiet and compact motor reduces pedalling drag and provides 20% more cruising range.

Anti-lock braking system (ABS): The EP600 has an ABS that helps reduce braking force for smoother, more reliable stopping power.

Shimano STEPS battery integrates smoothly into the frame and features 630Wh capacity, with a range of up to 120 miles.

IDEAL 28” Orama-E610FNX-EP600 has a CAN port for expanded compatibility with all smartphones for bike adjustments and adding other accessories.

Ideal Orama E610FNX EP600

£2,450.00

IDEAL BIKES

Tax included Delivered within 5-7 days

Size :

Colour :

Quantity :

This is an approximate conversion table to help you find your size.

If you already have purchased an item from our brand, we recommend that you select the same size as indicated on the table

Italian Size	French Size	Spanish Size	German Size	UK Size	USA Size	Japanese Size
34	30	30	30	4	00	34
36	32	32	32	6	0	36
38	34	34	34	8	2	38
40	36	36	36	10	4	40
42	38	38	38	12	6	42
44	40	40	40	14	8	44
46	42	42	42	16	10	46
48	44	44	44	18	12	48
50	46	46	46	20	14	50
52	48	48	48	22	16	52

Write review

27.5 IDEAL PRISMA-610FX Air Trekking In-Stock NOW

Buy in one click

Security policy

All payment secured through encrypted networks.

Delivery policy

CFree delivery all over UK.

Return policy

Free return within 14 days.

Geometry / Sizes

PRISMA-610FX WAVE

	Frame size	460	500	540
A	Top tube	590	600	605
B	Seat tube	460	500	540
C	Rear center	475	475	475
D	Whellbase	1130	1140.7	1146.3
E	bb drop	60	60	60
F	Seat angle	73°	73°	73°
G	Head angle	69°30'	69°30'	69°30'
H	Offset	45	45	45
I	Head tube	160	170	180

SIZE CHART

Reference IDEAL 28" FUTOUR-E610FX EP600

Data sheet

Frame: e-TOURING, Alloy 6061-T4/T6 hydroformed tubing, semi integrated battery, internal brake and speed cables
Size: 500mm
Fork: RST Volant-T, 60 mm, 30 mm, Coil
Drive Unit: Shimano STEPS DU-EP600, Center drive unit, 85Nm
Battery: Shimano STEPS BT-EN806, 630Wh, fully integrated
Display: Shimano STEPS SC-EN610
Power Adapter: Shimano STEPS EC-E8004, 4A, Fast charger
Shifter: Shimano STEPS SW-EN600-L / Shimano CUES SL-C7000-5
Crankset: Shimano FC-EM600
Cassette Sprocket: Shimano CS-LG400-10, 11-48T
Chain: Shimano CN-LG500-10
Chain Protector: Herrmans Slim
Front Hub: Shimano HB-QC400
Rear Hub: Shimano Nexus 5 SG-C7000-5D
Frame Lock: Abus 4960
Tires: Schwalbe Energizer Active Plus PunctureGuard, 50-622
Brakes: Shimano BR-MT200 / BL-MT201, Disc 180/180 mm
Handlebar: Ergotec Ladytown, 620 mm, safety level 4
Grips: Herrmans Lockable Grip Line
Stem: Ergotec Octopus 2 Ahead, verstellbar, 31.8 mm, 75/105 mm, safety level 4
Seat Post: Ergotec Atar, 30.9 mm, 250 / 350 mm, safety level 4
Saddle: Selle Royal Premium Essenza
Lightning Set: Herrmans H-Black MR9, 190 Lumen / AXA Blue Line 2LED
Mudguards: SKS PET A56, 56 mm
Carrier: ID Project, Racktime Snapit System
Rims: Mach1 640 Disc, 21C-622
Kickstand: Atran Rex-HV rear kickstand
