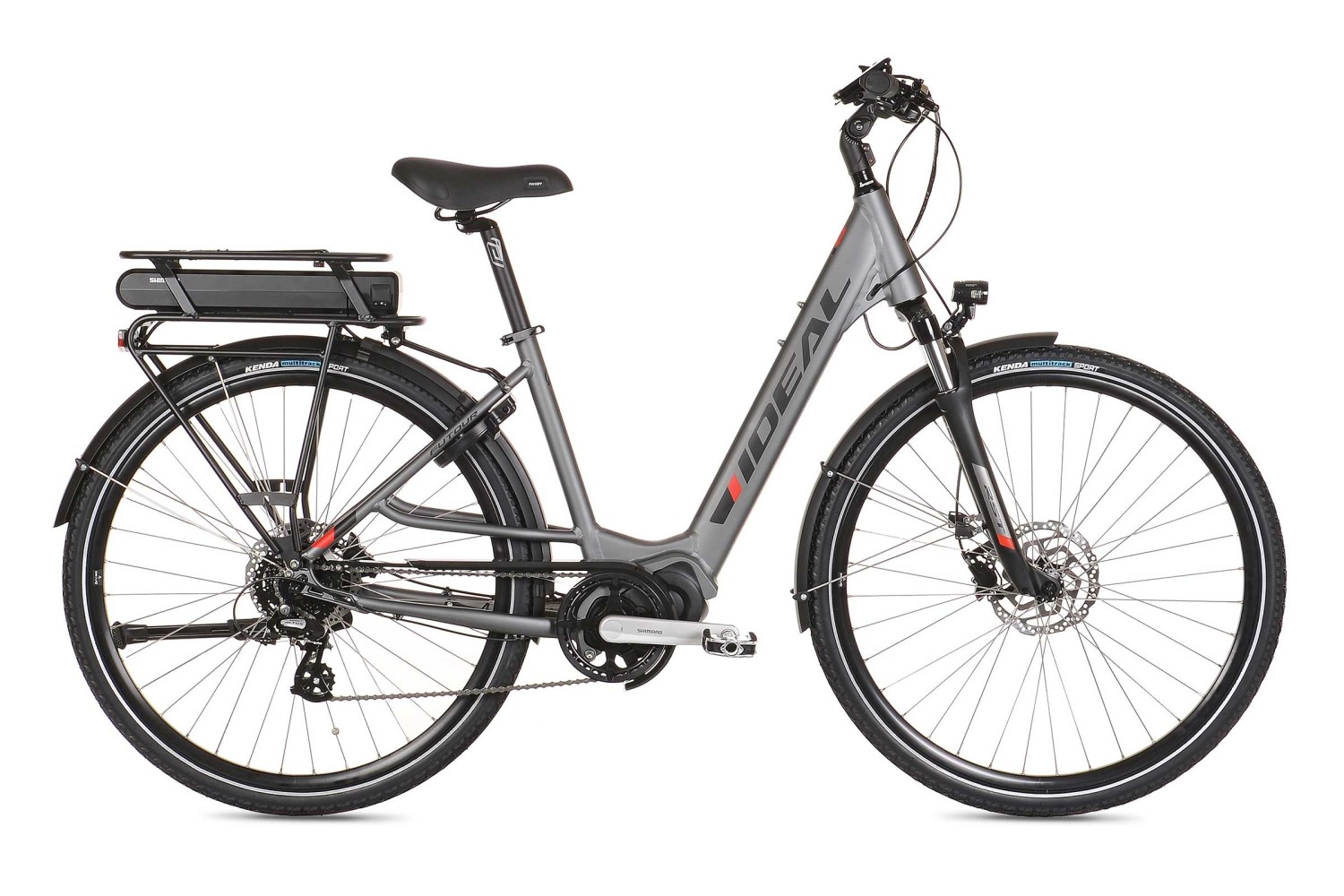

IDEAL 28" FUTOUR-E508 WAVE
Wheel: 28''
Speed: 8
Battery: SHIMANO 418Wh (11.6Ah)
IDEAL E-Bikes are 100% certified by the Hansecontrol Cert laboratory in Hamburg, Germany. Testing includes mechanical for frame and fork, mechanical dynamic (roller bench) or complete bike, electrical safety, electromagnetic compatibility, and chemical safety. FUTOUR E610FX WAVE is certified up to 120kg combined weight too. The HUMPERT ERGOTEC bar, stem, and post, are tested up to that weight.
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.
| Frame size | 460 | 500 | |
| A | TOP TUBE | 580 | 590 |
| B | SEAT TUBE | 460 | 500 |
| C | REAR CENTER | 450 | 450 |
| D | WHEEL BASE | 1084.5 | 1094.1 |
| E | B.B. DROP | 60 | 60 |
| F | SEAT ANGLE | 73° | 73° |
| G | HEAD ANGLE | 70°30' | 70°30' |
| H | OFFSET | 45 | 45 |
| I | HEAD TUBE | 160 | 170 |
SIZE CHART
IDEAL 28" FUTOUR-E508 WAVE
Data sheet
- Frame
- e-TOURING, Alloy 6061-T4/T6 hydroformed tubing, internal brake & gear cables
- Size
- 46/50 cm
- Fork
- RST Volant-T, 60mm, adjustable preload
- Drive Unit
- Shimano STEPS DU-E5000, 36V, 250W, 40Nm
- Battery
- Shimano STEPS BT-E6000, 36V, 11.6Ah, 418Wh
- Display
- Shimano STEPS SC-E6100
- Rear Derailleur
- Shimano Altus RD-M310 SGS
- Shifter
- Shimano STEPS SW-E7000-L switch / Shimano Deore SL-M4100-R
- Crankset
- Shimano STEPS FC-E6100, 38T
- Cassette Sprocket
- Shimano CS-M4100-10, 11-42T
- Chain
- Shimano CN-E6090-10
- Front Hub
- Shimano HB-M3050
- Rear Hub
- Shimano FH-M3050
- Tires
- Schwalbe Marathon GT Tour Performance, DualGuard, TwinSkin, 50-622 (29x2.00)
- Brakes
- Shimano BR-MT200 / BL-MT201 hydraulic disc brakes 180/180 mm
- Handlebar
- Ergotec Alloy 620 mm, safety level 4
- Stem
- Ergotec Octopus Alloy adjustable 31.8 mm, safety level 4
- Seat Post
- Ergotec Atar, Alloy 30.9 mm, safety level 4
- Saddle
- Selle Royal Premium, New Essenza VLS, Moderate
- Lightning Set
- Herrmans H-Black MR8, 50Lux / AXA Blue Line 2 LED
- Mudguards
- SKS PET, 53 mm
- Carrier
- Standwell Alloy
- Rims
- Mach1 640, 622-21
- Kickstand
- Atran Rex-HV, rear kickstand
