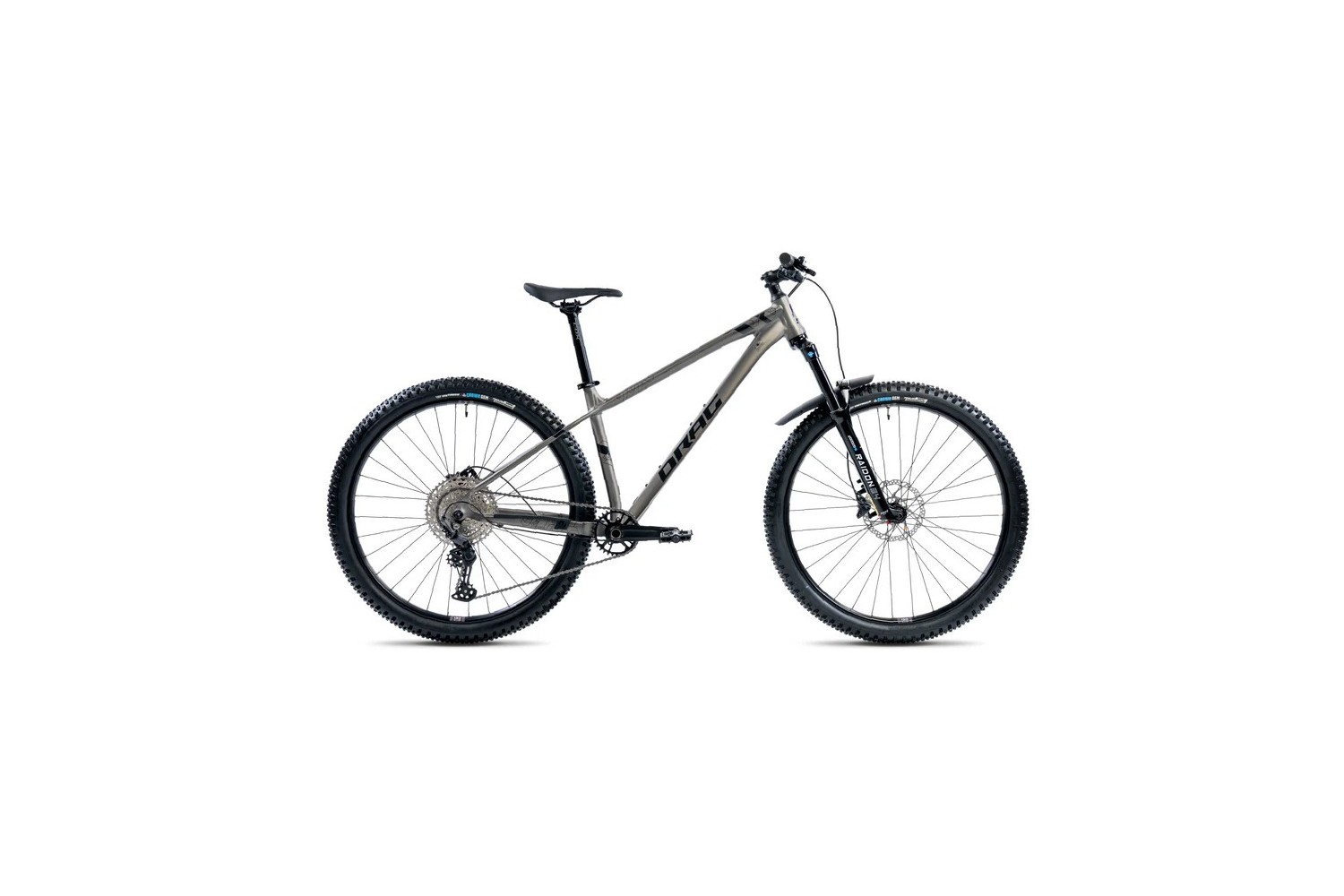

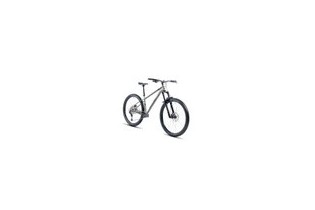

Drag 29" Shift 5.3
"The Drag 29 Shift 5.3 is perfect for cross-country and trail riding. It's an extremely capable mountain bike - built with a very lightweight aluminum frame, modern geometry, an SR Raidon34 Boost CTS DS 15x110 140mm 29" front shock, a Shimano Deore 1x11 drivetrain, and of course, Shimano Deore hydraulic brakes."
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.
Geometry
| Frame size | 460 | 500 | |
| A | TOP TUBE | 580 | 590 |
| B | SEAT TUBE | 460 | 500 |
| C | REAR CENTER | 450 | 450 |
| D | WHEELBASE | 1084.5 | 1094.1 |
| E | B.B. DROP | 60 | 60 |
| F | SEAT ANGLE | 73° | 73° |
| G | HEAD ANGLE | 70°30' | 70°30' |
| H | OFFSET | 45 | 45 |
| I | HEAD TUBE | 160 | 170 |
SIZE CHART
Drag 29 Shift 5.3
Data sheet
- Frame
- DRAG Shift, Alloy Hydroformed, Tripple Butted, ISCG 05 Mount, Tapered, 73mm BSA, UDH dropout
- Size
- S, M, L
- Fork

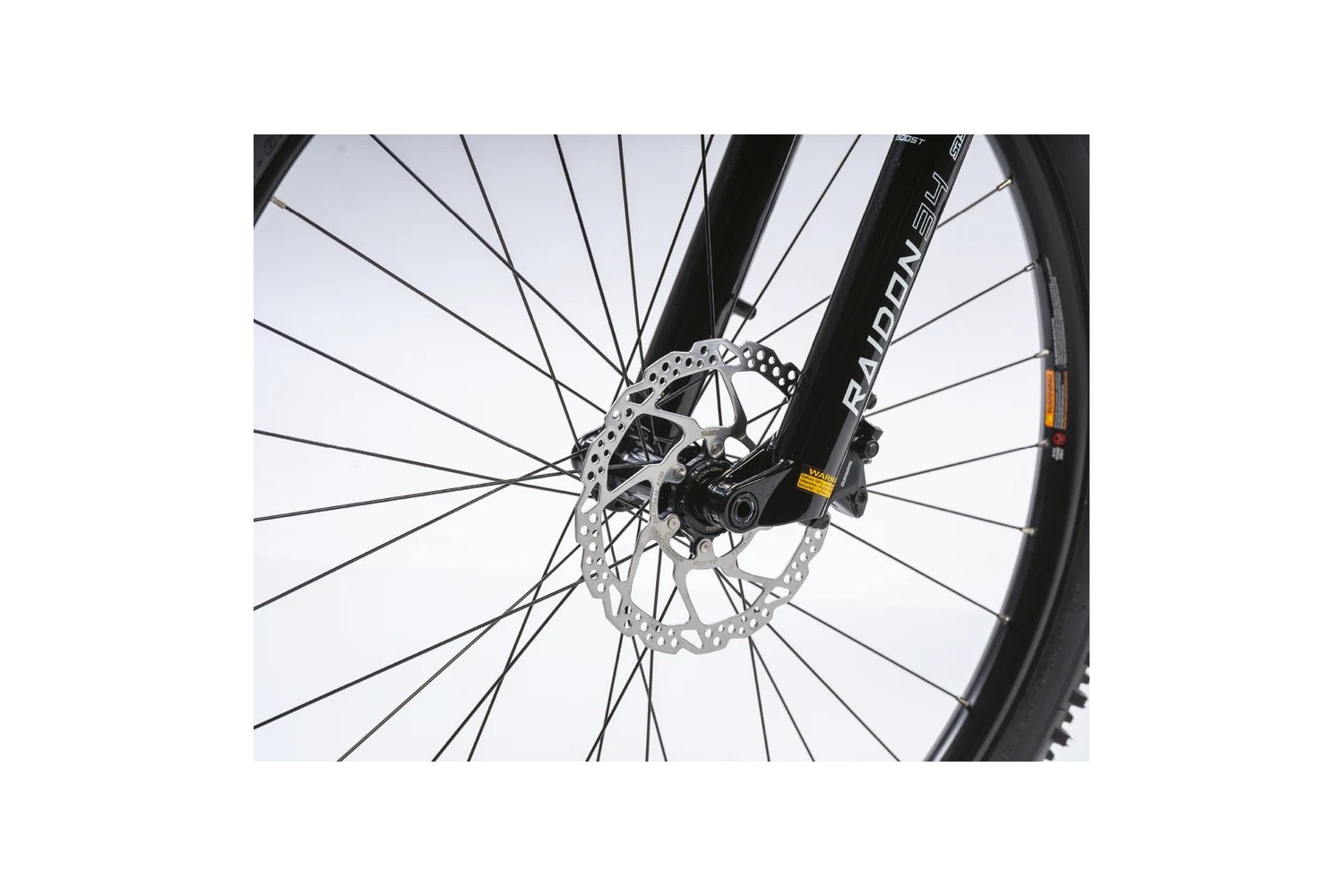

- SR Raidon34 Boost CTS DS 15x110 140mm 29"

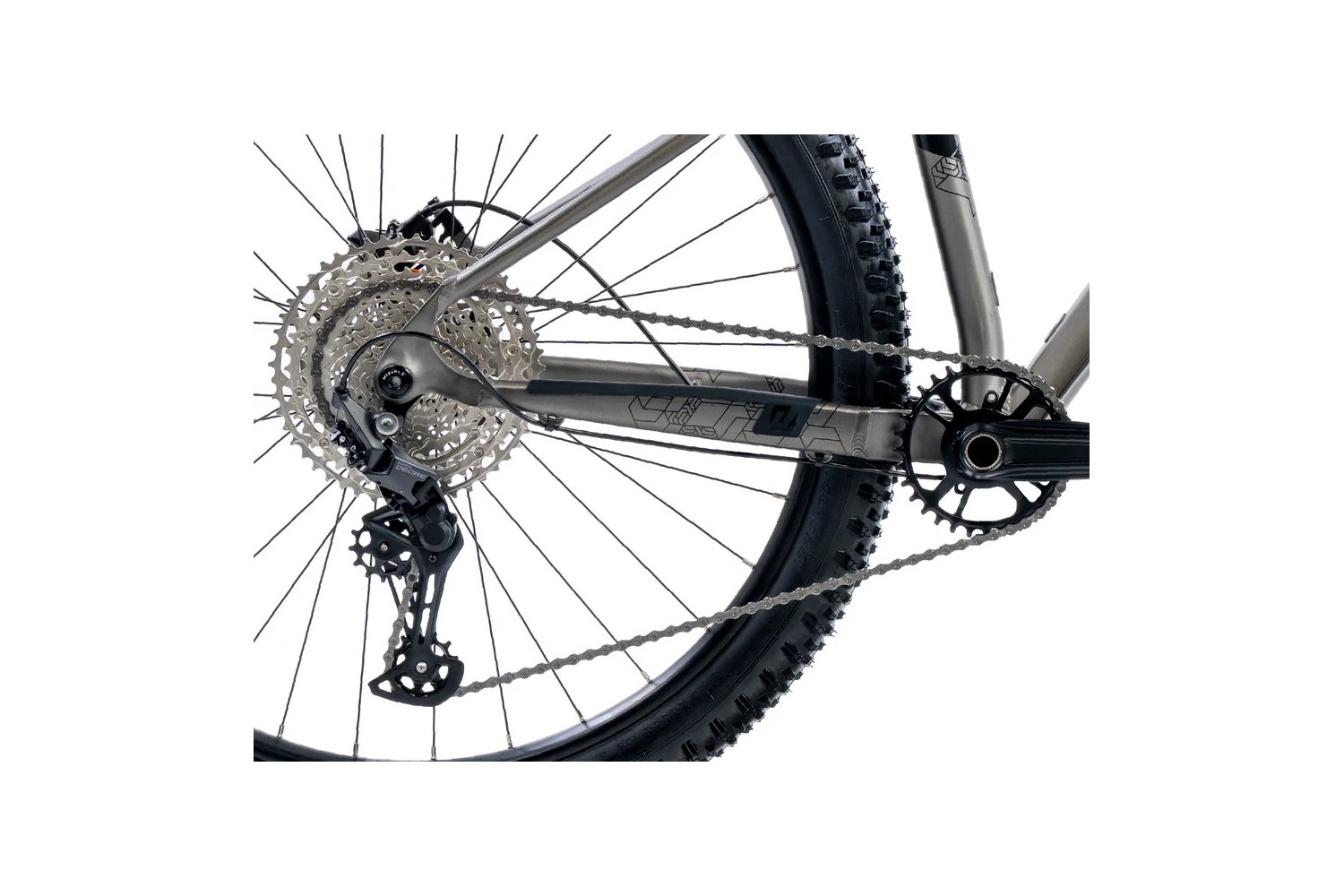

- Rear Derailleur

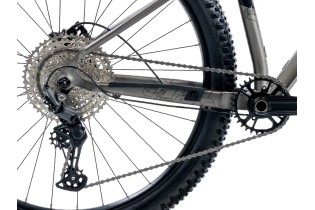

- Shimano, Deore RD-M5100, 11 speed, SGS
- Shifter
- Shimano, Deore SL-M5100, 11 speed
- Crankset
- Prowheel DMJ-CR094S-TT-B 32T 165mm, External BB
- Cassette Sprocket
- Shimano, Deore CS-M5100, 11 speed, 11/51T
- Chain
- Shimano CN-HG601, 11 Speed
- Tires
- Vee Tire Crown GEM 29X2.30,
- Brakes

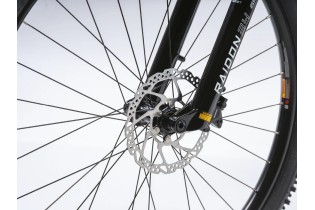

- Shimano Deore BL-M4100, BR-MT410, Hydraulic Disc Brake; ROTOR Shimano RT54 180mm
- Handlebar
- COX Rogue SL 31.8mm. 780mm
- Stem
- COX Rogue R3, Forged Alloy 31.8mm. 50mm
- Seat Post
- COX Rogue SE, Double Bolt, 31.6mm
- Saddle
- COX Strike II
- Rims
- Hand Build, WTB ST i29 TCS 2.0 Rims, Shimano MT400 CL Hubs
