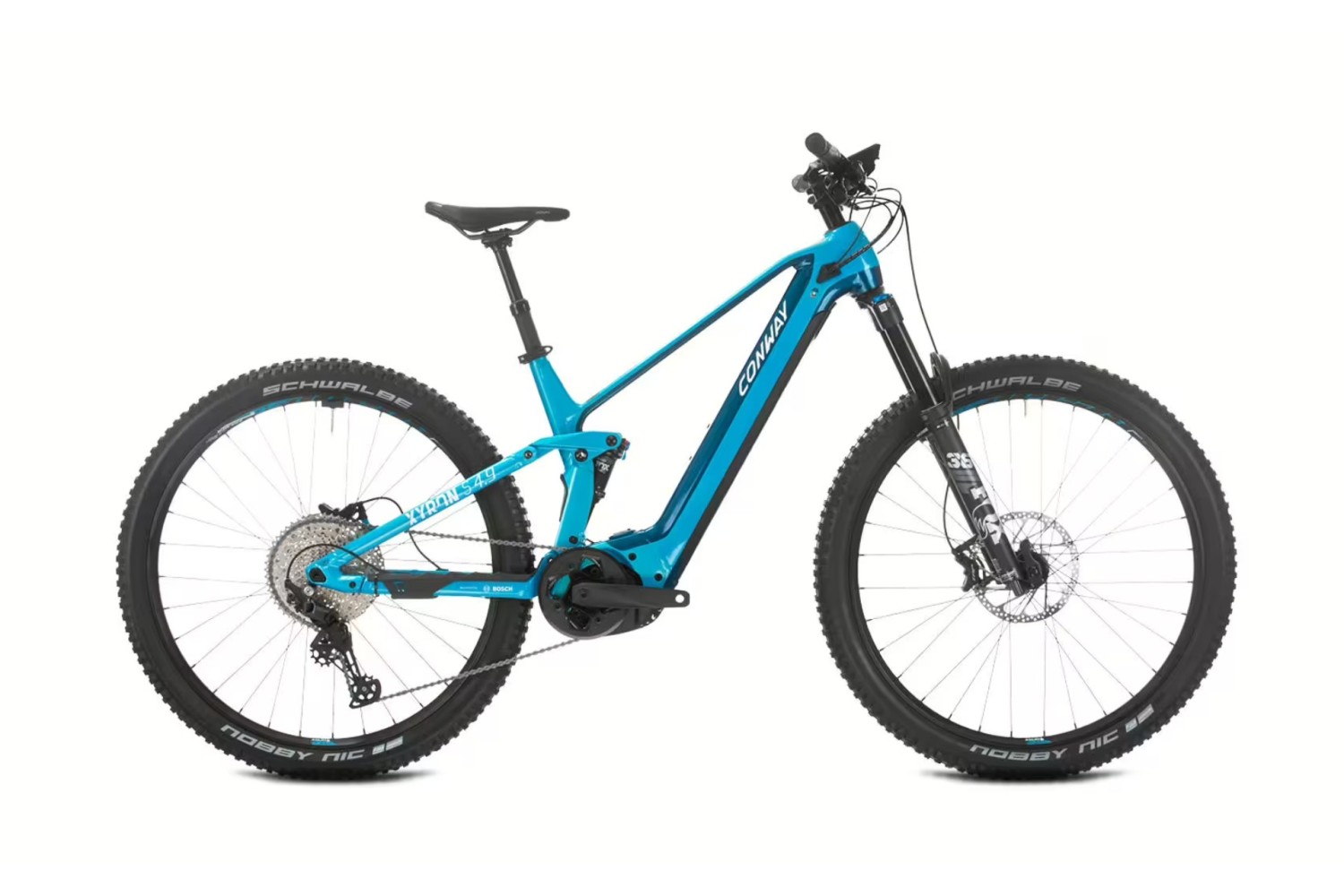

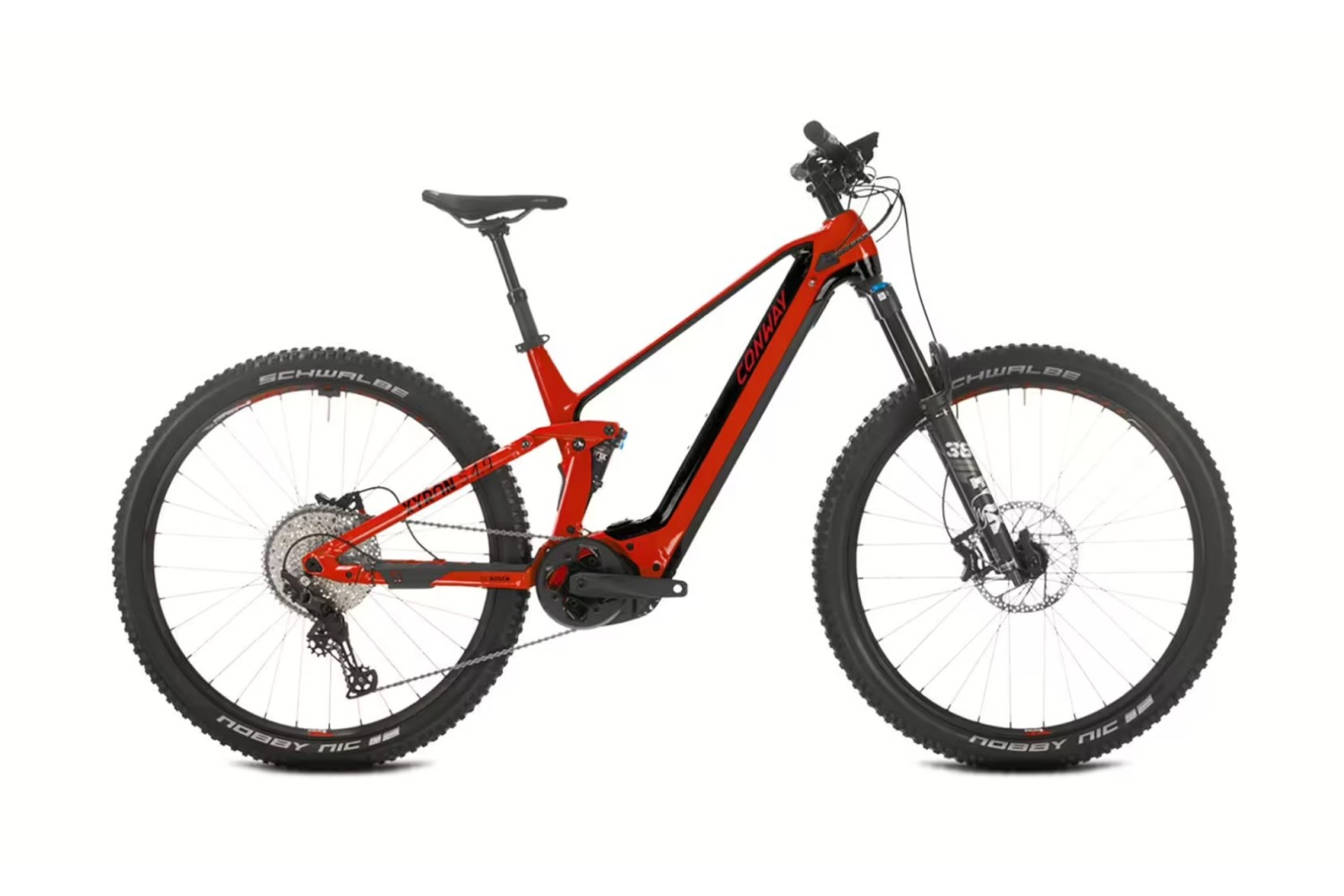

Conway Xyron S 4.9 29"
Wheel: 29"
Speed: SHIMANO 11sp
Battery: BOSCH 750Wh
Motor: BOSCH 85Nm
For fast downhill and steep uphill.
The robust equipment paired with the solid aluminum frame makes the new Xyron 4.9 the bike-to-be when it comes to fast downhill and steep uphill. CONWAY has designed the frame anew: Upgraded with the 750-Wh BOSCH battery. Looks tidy and clean, and all cables are also routed in the frame.
The off-road idea is properly driven by the full suspension with 150 mm travel on fork and frame. Speed's comes from the interaction of the sporty BOSCH Performance CX motor and the SHIMANO Deore 11-speed derailleur. With its 11-51 teeth, it offers the full range for touring through low mountain ranges, while the motor pushes you powerfully up the mountains at up to 25 km/h.
Optimal grip even on loose ground bring Schwalbes "Nobby Nic" tires in 65 mm width. Combined with the 29er wheels, they provide the best rolling properties in changing terrain. The adjustable "Drop-A-Gogo" seatpost from Contec also makes its contribution.
Security policy
All payment secured through encrypted networks.
Delivery policy
CFree delivery all over UK.
Return policy
Free return within 14 days.

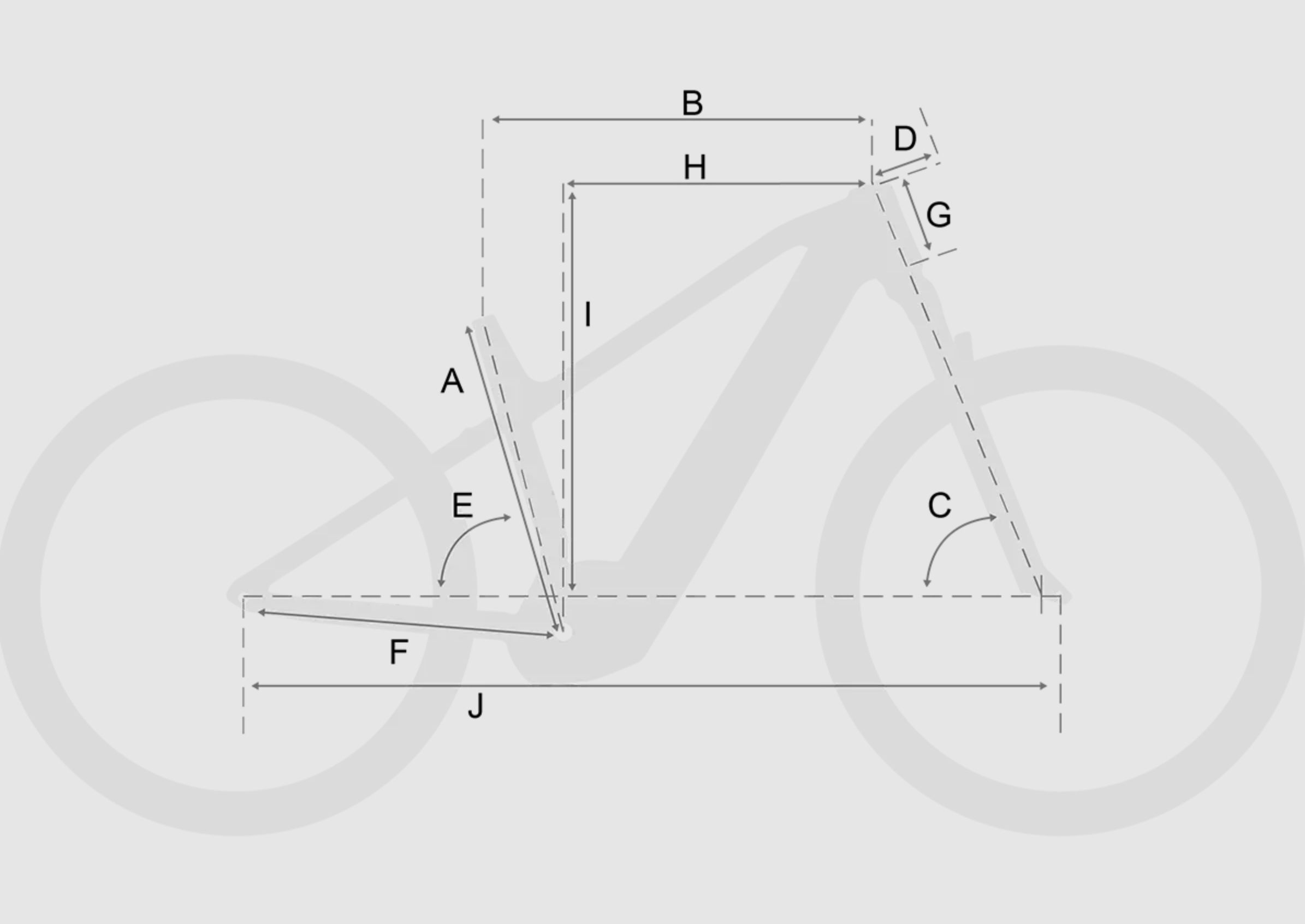

GEOMETRY AND SIZE CHART
| S | M | L | XL | XXL | |
| A - Seat tube: | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| C - Steering tube angle: | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| D - Stem length: | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
| E - Seat angle: | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| F - Chainstay: | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| G - Steering tube: | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| H - Reach: | 417 mm | 437 mm | 454 mm | 472 mm | 488 mm |
| I - Stack: | 637 mm | 637 mm | 646 mm | 655 mm | 664 mm |
| J - Wheel distance: | 1194 mm | 1216 mm | 1234 mm | 1254 mm | 1274 mm |
CONWAY 29" Xyron S 8.9 Carbon
Data sheet
- Frame
- CONWAY Fully Intube Bosch, Aluminium
- Size
- 40cm-S; 43cm-M; 46cm-L; 49cm-XL; 52cm-XXL
- Fork
- MARZOCCHI Bomber Z2 150MM
- Drive Unit
- BOSCH Performance CX, 36 V, 250 W, 85Nm
- Battery
- BOSCH Powertube 750 Wh,
- Display
- BOSCH Kiox 300
- Rear Shock
- FOX FLOAT DPS,Trunnion, Evol LV 55MM
- Rear Derailleur
- SHIMANO RD-M5100, DEORE 11-SPEED
- Shifter
- SHIMANO SL-M5100-IR, DEORE 11-SPEED
- Crankset
- MIRANDA Epsilon, 165 mm, 36 teeth
- Cassette Sprocket
- SHIMANO CS-M5100-11, DEORE 11-51T
- Chain
- KMC X11eT, EPT, Anti-Rust
- Front Hub
- SHIMANO RM66/ RODI READY 35 29
- Rear Hub
- SHIMANO RM66/ RODI READY 35 29
- Tires
- SCHWALBE MAGIC MARY Evo, Super Gravity, TLE, EvoLine, Folding
- Brakes
- TRP HD-M807 Hydraulic
- Handlebar
- HUMPERT ERGOTEC 780MM 31.8
- Grips
- SQlab "70X"
- Stem
- ZOOM TDS-D623-8FOV 35MM 31.8
- Seat Post
- CONTEC "Drop-A-Gogo", Ø 31.6 mm, 340 mm long, 100 mm adjustment range
- Saddle
- FIZIK
